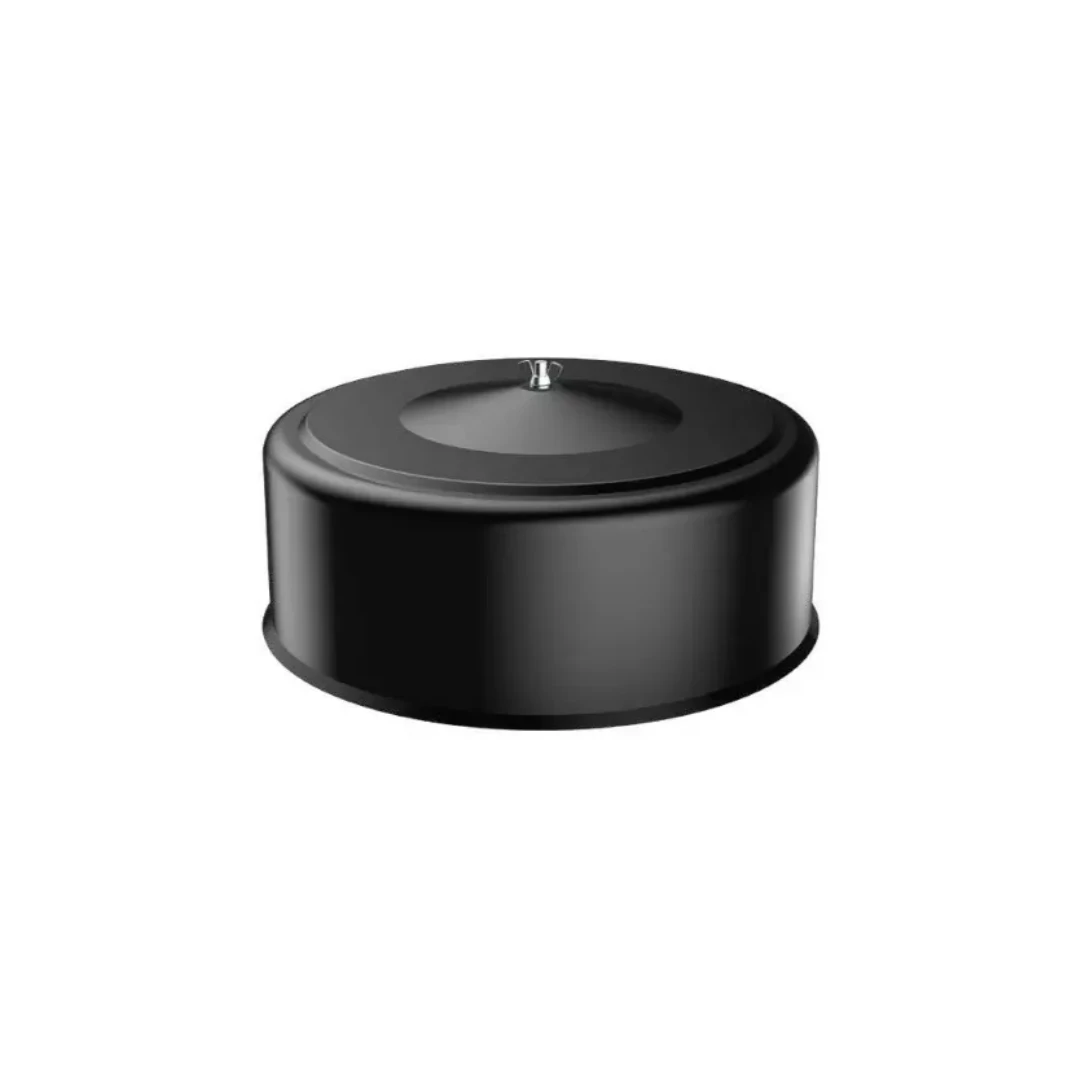

CBE UFI Filters: High-Flow Protection for Industrial Tanks

The CBE series by UFI Filters is the ideal solution for inlet air filtration on hydraulic tanks that require high air flow rates and reliable protection. These flanged air breathers are designed to handle large volumes of air exchange, preventing the ingress of solid contaminants that could damage sensitive components of the hydraulic circuit.

Construction Features and Materials

CBE filters are built to ensure durability and resistance in demanding industrial environments:

• Housing: Entirely made of black-painted steel, it offers superior mechanical protection and resistance to external agents.
• Mounting: Via a round flange with 4 mounting holes at 90°, ensuring a stable and secure connection to the tank.

Filter Elements and Variants

The series offers flexibility in the choice of filter media to meet specific contamination requirements:

• Standard (VD): Velvet mesh with an air filtration rating of 10 µm, optimal for most applications.
• On Request (FD): Glass fiber with a filtration rating of 2.5 µm, for superior air cleanliness.
• On Request (CD): Impregnated cellulose with a filtration rating of 10 µm. The filter element is replaceable, facilitating routine maintenance operations.

Performance and Operating Conditions

CBE UFI Filters stand out for their high flow capacity, essential for tanks with rapid oil level changes:

• Maximum Flow Rate (Qmax): The range covers flow rates from 6,000 l/min (CBE11) up to an impressive 20,000 l/min for the largest model (CBE23).
• Temperature: They operate effectively over a wide temperature range, from -25°C to +110°C.

Fluid Compatibility

These filters are fully compatible with the main types of hydraulic fluids, including HH, HL, HM, HV, and HTG according to ISO 6743/4, making them versatile for various hydraulic applications.

Dimensions and Models

The CBE series is available in several sizes (11, 12, 21, 22, 23), differing in flange dimensions (hole diameters from 100 mm to 165 mm) and flow capacity, allowing selection of the model perfectly sized for the system.

Technical summary table of the main characteristics of CBE UFI Filters.
