Advanced Monitoring for Hydraulic Systems
The Stauff contamination control accessory range includes clogging indicators specifically designed for installation on Spin-On filters. These devices are essential for detecting the saturation status of the filter element, enabling timely maintenance actions and preventing damage to hydraulic components. The robust construction features brass for the movement and pressure element, ensuring reliability and durability.
Visual Pressure and Vacuum Indicators

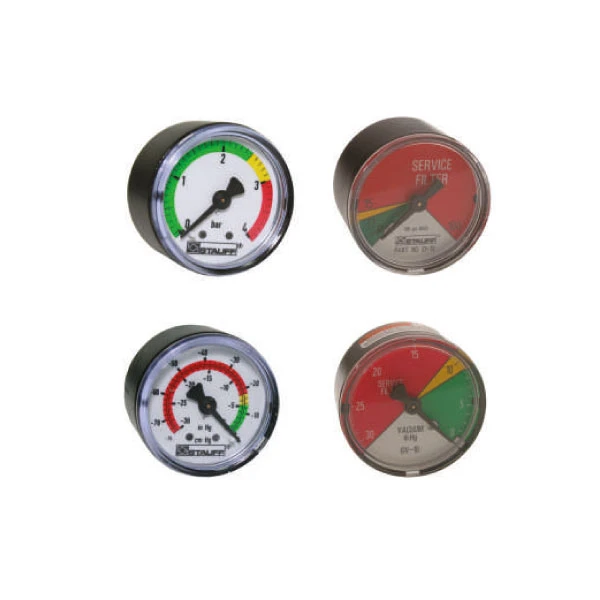

For return line applications, visual pressure indicators (pressure gauges) are available with graduated scales in bar or PSI. These instruments feature colored segments (Green, Yellow, Red) that clearly indicate operating status:
- Green: Normal operation (e.g. 0…1.2 bar).
- Yellow: Pre-alarm or caution (e.g. 1.2…1.5 bar).
- Red: Clogging and replacement required (e.g. 1.5…2.5 bar).
For suction line applications, Stauff offers visual vacuum indicators (vacuum gauges) with scales in cm Hg or in Hg, also featuring colored zones to simplify reading of critical vacuum levels (up to -76 cm Hg or -30 in Hg).
Electrical Clogging Switches
Electrical indicators provide a remote signal for automated monitoring. They can be configured with different connector types to suit existing system standards:
- Type M12: 5-pin connector according to IEC 61076-2-101.
- Type A: AMP Junior Timer plug.
- Type D: DEUTSCH DT04-2P plug.
- Type S: With rubber boot protection.
- Type W: With 90-degree polyamide cap.
Technical Specifications and Variants
The flexibility of the range is reflected in the available thread options, offered in both 1/8 BSP and 1/8 NPT. Electrical versions support different operating voltages, including 42 V models (NO or NC contacts) and versions capable of operating between 110 V and 230 V (available for Type W connectors). Pressure set points are calibrated to meet specific requirements, such as 1.3 bar for pressure and -0.1 bar for vacuum, ensuring precise indicator activation.
Summary technical table of the main features of Stauff Spin-On Filter Clogging Indicators.
| Feature | Value |
|---|---|
| Applications | Return lines (Pressure), Suction lines (Vacuum) |
| Thread Connection Types | 1/8 BSP, 1/8 NPT |
| Pressure Element Material | Brass |
| Pressure Scales (Visual Indicators) | 0…2.5 bar; 0…4 bar; 0…12 bar; 0…100 PSI |
| Vacuum Scales (Visual Indicators) | -76…0 cm Hg; -30…0 in Hg |
| Electrical Connector Types | M12 (IEC 61076-2-101), AMP Junior Timer, DEUTSCH DT04-2P, Rubber boot, 90° polyamide cap |
| Switch Operating Voltages | 42 V (NO/NC), 110 V…230 V |
| Pressure Set Point (Switch) | 1.3 bar / 18.8 PSI; -0.1 bar / -1.45 PSI |
