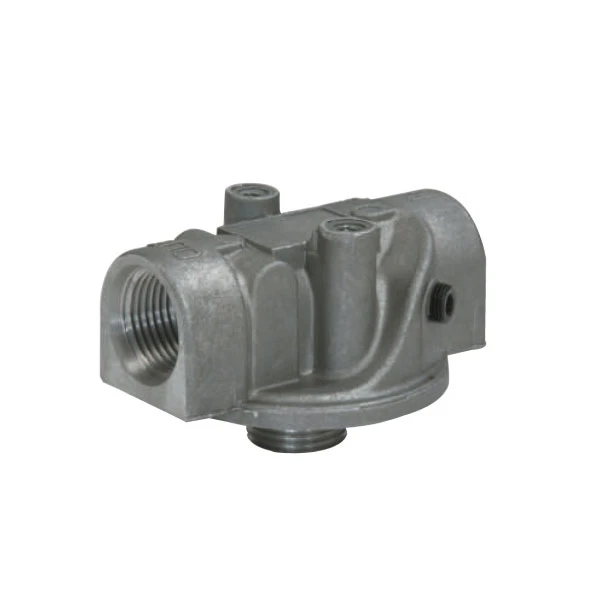

SAF-05/06/07/11
The SAF-05/06/07/11 Spin-On Filter Heads are in-line hydraulic components designed to ensure reliability in both return-line and suction-line applications. Manufactured entirely from aluminum, these filter heads support a maximum operating pressure of 14 bar (200 PSI) and provide flow rates of up to 90 l/min for return lines and 23 l/min for suction lines. Compatible with mineral oils and SF-65 series filter elements, they are available with NPT or SAE O-ring connections and optional integrated bypass valves.
The SAF-05/06/07/11 Spin-On Filter Heads represent an advanced technical solution for hydraulic filtration, configured as in-line Spin-On filter heads. The construction is made of aluminum, ensuring both light weight and structural strength. The design is optimized for installation with SF-65 series filter elements (Type A sealing contour), which are not included in the standard supply of the filter head.
From a fluid dynamics standpoint, these filter heads are designed to handle different flow rates depending on the application. For return-line use, the maximum flow rate is 90 l/min (25 US GPM), while for suction-line applications the flow rate is 23 l/min (6 US GPM). The maximum supported operating pressure is 14 bar (200 PSI). For applications without a bypass valve, the maximum allowable differential pressure is 5.5 bar (80 PSI). The operating temperature range is wide, allowing use from -30 °C to +100 °C (-22 °F to +212 °F). Fluid compatibility includes standard mineral oils, with the option to request compatibility for other fluids.
The SAF series stands out for the variety of available port connection options, which define the specific model code (05, 06, 07, 11):
The SAF-05/06/07/11 Spin-On Filter Heads provide flexibility in circuit protection through optional integrated bypass valves. Available bypass settings include:
In addition, the filter heads are prepared for the installation of clogging indicators (standard 1/8 NPT). Drilling options include configurations for return-line applications (Pos. 1), suction-line applications (Pos. 2), or both, ensuring optimal filter condition monitoring.
| Feature | Value |
|---|---|
| Construction Type | In-line Spin-On filter head |
| Material | Aluminum |
| Max Operating Pressure | 14 bar / 200 PSI |
| Max Flow (Return Line) | 90 l/min / 25 US GPM |
| Max Flow (Suction Line) | 23 l/min / 6 US GPM |
| Operating Temperature | -30 °C to +100 °C / -22 °F to +212 °F |
| Available Connections | NPT, SAE O-ring thread |
| Fluid Compatibility | Mineral oils (others on request) |
| Compatible Filter Elements | SF-65 series |
| Bypass Valve Options | 0.2, 0.35, 1.0, 1.7 bar (or no bypass) |
