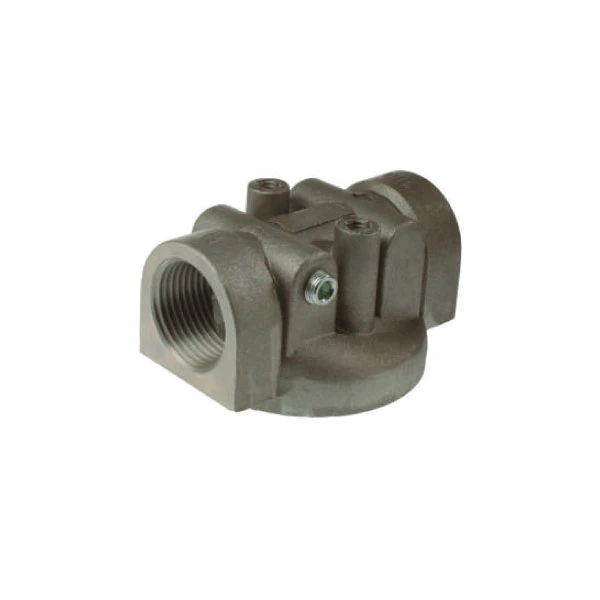

Spin-On Filter Heads SAF-10/13

Description

Technical Overview and Construction

The SAF-10/13 series consists of in-line Spin-On filter heads manufactured from aluminum. The compact design is intended to accommodate SF-65 series filter elements (not included in the standard supply), featuring a 1-12 UNF threaded connection for the filter element. The design includes 1/4-20 UNC mounting holes, facilitating integration into existing hydraulic systems.

Hydraulic Performance

The SAF-10/13 Spin-On filter heads are sized to handle specific flow rates depending on the application:

• Return line: Flow rate up to 128 l/min (34 US GPM).
• Suction line: Flow rate up to 30 l/min (8 US GPM).

The maximum supported operating pressure is 14 bar (200 PSI). For applications without a bypass valve, the maximum allowable differential pressure is 5.5 bar (80 PSI).

Operating Conditions and Compatibility

The component is designed to operate over a wide temperature range, from -30 °C to +100 °C (-22 °F to +212 °F). Fluid compatibility includes standard mineral oils, with the option to use other fluids upon specific request.

Configurations and Options

The system offers flexibility through multiple connection and control options:

Port Connections

The filter heads are available with two types of threaded main port connections:

• Code 1: 1 NPT.
• Code 13: SAE 1-5/16-12 (O-ring thread).

Bypass Valve (Optional)

The filter head can be configured with an integrated bypass valve. Available settings include:

• B0.2: 0.2 bar (3 PSI).
• B0.35: 0.35 bar (5 PSI).
• B1.0: 1 bar (15 PSI).
• B1.7: 1.7 bar (25 PSI).
• Alternatively, a version without bypass is available (Code 0).

Clogging Indicators

The filter heads include 1/8 NPT ports for clogging indicators. Drilling configurations vary according to application:

• Position 1: Drilled for return-line applications.
• Position 2: Drilled for suction-line applications.

Technical summary table of the main features of the SAF-10/13 Spin-On Filter Heads.
