Description
Technical and Construction Features

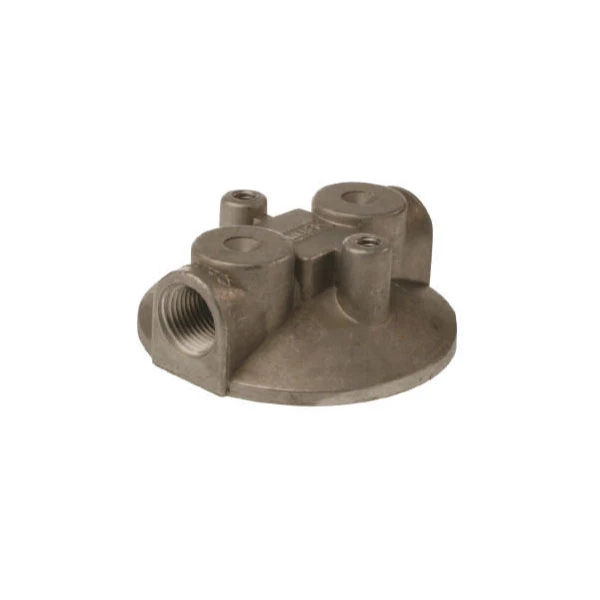

The SLF-02/03/04 Spin-On Filter Heads provide a reliable solution for in-line filtration in hydraulic systems. Manufactured entirely from aluminum, these filter heads ensure light weight and high strength. The design includes 1/4-20 UNC threaded mounting holes, enabling easy installation in confined spaces with compact dimensions and optimized overall size. The system is designed to operate at a maximum pressure of 14 bar (200 PSI) and a maximum differential pressure of 5.5 bar (80 PSI) for applications without a bypass valve.
Flow Performance and Applications
These components are highly versatile and suitable for various system configurations. In return-line applications, the filter heads handle flow rates of up to 26 l/min (7 US GPM). For suction-line use, the nominal flow rate is 7 l/min (2 US GPM). Fluid compatibility is ensured for mineral oils, with the option to request configurations for other fluids. They operate efficiently within a wide temperature range from -30 °C to +100 °C.
Available Variants and Connections
The SLF-02/03/04 series stands out for the variety of available port connections, offered in both NPT and SAE O-ring thread standards to meet different installation requirements:
- SLF-02: Equipped with 1/4 NPT connections.
- SLF-03: Equipped with 3/8 NPT connections.
- SLF-04: Equipped with 9/16-18 SAE connections.
The filter element connection is a standardized 3/4-16 UNF.
Filter Element Compatibility and Accessories
The filter heads are specifically designed for use with SF-63 series filter elements and elements with a Type A sealing contour. Please note that the filter element is not included in the standard supply. For filter condition monitoring, the heads feature ports for clogging indicators with 1/8 NPT threads. Indicator positioning depends on the application: Position 1 for return lines and Position 2 for suction lines, ensuring accurate monitoring under all operating conditions.
Technical summary table of the main features of the SLF-02/03/04 Spin-On Filter Heads.
| Feature | Value |
|---|---|
| Product Series | SLF-02 / SLF-03 / SLF-04 |
| Construction Type | In-line Spin-On filter head |
| Material | Aluminum |
| Max Operating Pressure | 14 bar / 200 PSI |
| Max Differential Pressure | 5.5 bar / 80 PSI (without bypass valve) |
| Flow Rate (Return Line) | 26 l/min / 7 US GPM |
| Flow Rate (Suction Line) | 7 l/min / 2 US GPM |
| Temperature Range | -30 °C to +100 °C |
| Fluid Compatibility | Mineral oils (others on request) |
| Element Connection | 3/4-16 UNF |
| Compatible Elements | SF-63 series (Type A sealing contour) |
| Connections (SLF-02) | 1/4 NPT |
| Connections (SLF-03) | 3/8 NPT |
| Connections (SLF-04) | 9/16-18 SAE |
| Clogging Indicator Port | 1/8 NPT |
