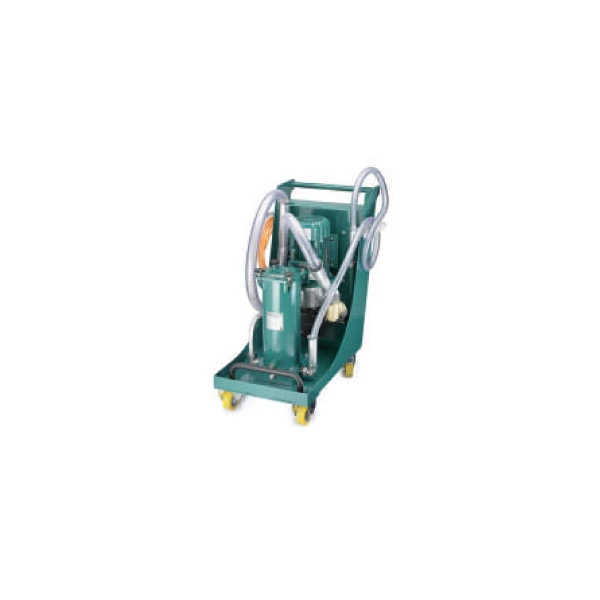

Stauff Mobile Filtration System SMFS-U-060

Description

Systemivt Overview

The SMFS-U-060 Mobile Filtration System is part of the STAUFF range of units designed to cover a wide variety of offline filtration applications. This mobile unit is engineered to support preventive maintenance, both during the transfer of new oils and during the purification of existing hydraulic and lubrication systems. Its configuration allows flexible use, operating effectively as both a mobile unit and for stationary offline filtration.

Performance Specifications and Drive System

The SMFS-U-060 model stands out for its high nominal flow rates and its ability to support extended operating times.

• Flow rate: The unit delivers a maximum nominal flow rate of 60 l/min (15 US GPM).
• Pump unit: Equipped with a high-quality gear pump coupled with high-efficiency three-phase motors.
• Power supply: The standard version features a 400 V 50 Hz motor unit, suitable for continuous-duty operation.

Filtration Technology

The efficiency of the purification process is ensured through the use of advanced components:

• Filter media: The filter elements use 4Pro media, providing high dirt-holding capacity and superior filtration performance.
• Micron ratings: Filtration ratings from 3 to 125 µm are available, allowing the system to be adapted to different contamination levels.
• Pre-filtration: All units in the series are equipped as standard with a 200 µm pre-filter to protect the pump and the main circuit from coarse contaminants.

Construction Features and Design

The SMFS-U-060 Mobile Filtration System features a robust construction designed for industrial use:

• Structure: Compact and easy to handle design, with an approximate weight of 165 kg (364 lbs).
• Environmental safety: An integrated drip tray is provided to collect residual oil and prevent accidental spills.
• Maintenance: The system is designed for simple and safe handling, facilitating filter element replacement and routine maintenance.

Applications

Thanks to the selection of high-quality components, the SMFS-U-060 is suitable for the rapid purification of small to medium-sized systems or for permanent offline filtration on large hydraulic systems.

Technical summary table of the main features of the SMFS-U-060 Mobile Filtration System.
