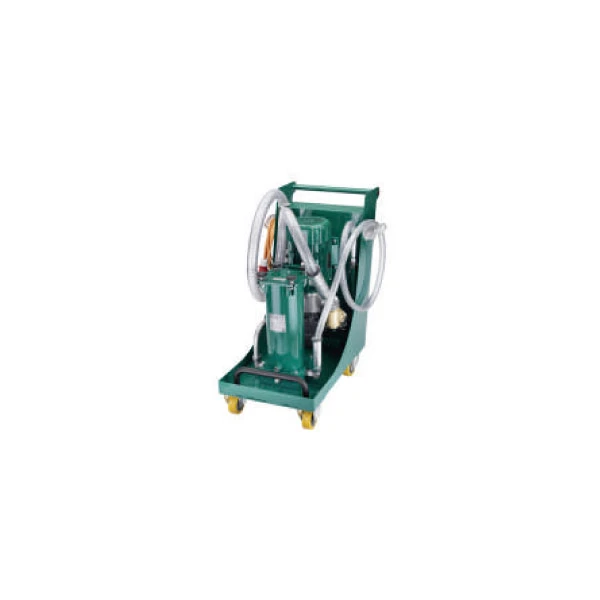

SMFS-U-110
The SMFS-U-110 Mobile Filtration System is designed to ensure maximum efficiency in offline filtration and hydraulic fluid transfer for large-scale installations. Equipped with a high-quality gear pump, it delivers a nominal flow rate of 110 l/min (30 US GPM) and operates with a 400 V 50 Hz three-phase motor. The system includes a 200 µm pre-filter and an integrated fluid collection tray, ensuring reliability and operational safety.
The SMFS-U-110 Mobile Filtration System stands as a flagship solution within the STAUFF range for applications requiring high filtration flow rates. Specifically designed for offline filtration and oil transfer, this cart-mounted unit is ideal for preventive maintenance and the purification of large hydraulic and lubrication systems. Its Made in Germany construction ensures robustness and reliability even in the most demanding industrial environments.
The core of the SMFS-U-110 unit is a high-quality gear pump capable of delivering a maximum nominal flow rate of 110 l/min (30 US GPM). The system is driven by a powerful 400 V 50 Hz three-phase electric motor, engineered to support extended operating times and continuous-duty cycles without performance loss. With an approximate weight of 177.2 kg, the unit provides excellent structural stability during operation.
Filtration efficiency is ensured through compatibility with filter elements featuring 4Pro media, available with filtration ratings from 3 to 125 µm, offering high dirt-holding capacity. Each unit is equipped with a 200 µm pre-filter to protect the pump and internal components from coarse contamination. In addition, the integrated residual oil drip tray guarantees clean and safe operation, preventing accidental spills in the working environment.
| Feature | Value |
|---|---|
| Model | SMFS-U-110 |
| Max. Nominal Flow Rate | 110 l/min (30 US GPM) |
| Pump | High-quality gear pump |
| Electric Motor | 400 V 50 Hz (Three-phase) |
| Operation | Extended operating times (Long-term) |
| Pre-filter | 200 µm |
| Filtration Ratings | Available from 3 to 125 µm |
| Weight | Approx. 177.2 kg / 391 lbs |
| Origin | Made in Germany |
