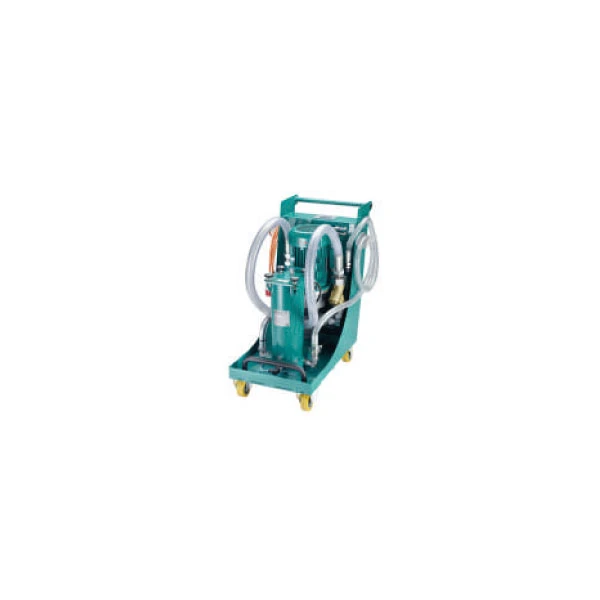

SMFS-U-CM-110
The SMFS-U-CM-110 Mobile Filtration System with Particle Counter is an advanced solution for offline filtration of large hydraulic systems. Designed for long-term operation, this robust unit integrates an 8-channel particle counter for precise contamination monitoring. Equipped with a high-quality gear pump, it delivers flow rates of up to 110 l/min, ensuring high performance through 4Pro filter media and a 200 µm pre-filter.
The SMFS-U-CM-110 Mobile Filtration System is designed to cover a wide range of offline filtration applications. As a compact, powerful, and robust unit, it effectively supports preventive maintenance, both during the transfer of new oils and in the purification of existing lubrication and hydraulic systems. The specific CM-110 configuration is particularly suitable for permanent offline filtration on large hydraulic systems, where operational continuity and continuous monitoring of fluid quality are critical.
The defining feature of the SMFS-U-CM-110 model is the integrated 8-channel particle counter. This device enables real-time analysis of solid contamination levels in the fluid, providing immediate feedback on the effectiveness of the filtration process. The core of the system is a high-quality gear pump driven by a high-performance, energy-efficient three-phase motor (400 V, 50 Hz), suitable for continuous-duty operation. This configuration ensures high nominal flow rates, reaching up to 110 l/min (30 US GPM), making the unit ideal for long-term operation.
The unit is built to ensure easy and safe handling, featuring a rugged construction. To keep the work area clean and safe, the system is equipped with a drip tray for residual oil. The filtration process is optimized through two stages:
Despite its size and power, the system maintains excellent operational flexibility, functioning effectively as both a mobile and stationary unit. The “Made in Germany” build quality ensures long-term reliability, with a total weight of approximately 220 kg (485 lbs), reflecting its structural robustness.
| Feature | Value |
|---|---|
| Model Type | SMFS-U-CM-110 |
| Main Function | Mobile filtration system with particle counter |
| Max. Nominal Flow Rate | 110 l/min / 30 US GPM |
| Particle Monitoring | Integrated 8-channel particle counter |
| Pump | High-quality gear pump |
| Motor Power Supply | 400 V 50 Hz |
| Available Micron Ratings | From 3 to 125 µm |
| Pre-filter | 200 µm |
| Approx. Weight | 220 kg / 485 lbs |
| Duty Cycle | Continuous (long-term operating times) |
| Origin | Made in Germany |
