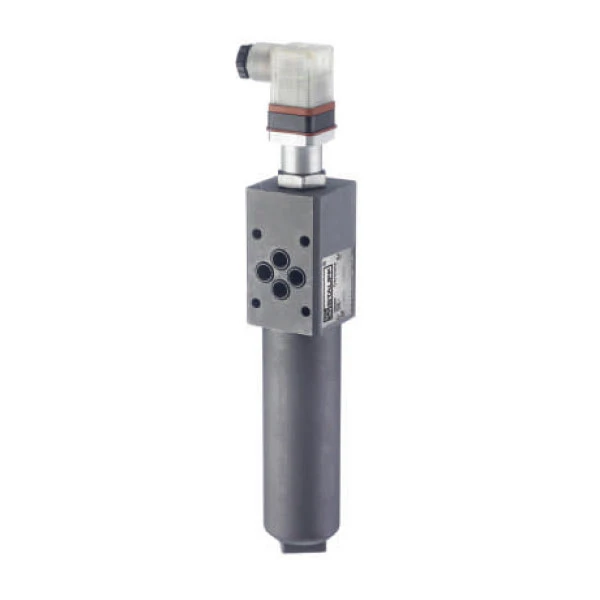

Stauff SFZ Pressure Filters

Description

Overview and Applications

The Stauff SFZ Pressure Filter series is engineered for hydraulic applications requiring sandwich plate mounting on manifold blocks. These components are designed to operate in high-pressure systems, ensuring a maximum operating pressure of 315 bar (4560 PSI) and a minimum burst pressure of 945 bar (13,705 PSI), thus providing a high structural safety factor.

Design Specifications and Materials

Robustness is a core feature of the SFZ series. The filter head is manufactured from free-cutting steel, while the bowl is made of cold-drawn steel. To ensure optimal sealing, the filters are equipped with O-rings available in NBR (Buna-N®), FKM (Viton®), or EPDM, combined with PTFE backup rings. The connection interface complies with ISO 4401-03-02-0-05 NG6 / DIN 24340-A6 / Cetop R 35 H standards.

Filter Elements and Media

SFZ filters use Stauff SE series filter elements, offering high dirt-holding capacity and long service life. Various filter media can be selected depending on the application:

• Inorganic glass fiber (Codes G and H): Available with collapse pressure of 25 bar (G) or 210 bar (H) for fine filtration (3, 5, 10, 20 µm).
• Stainless steel fiber (Code M): High collapse resistance (210 bar) for fine filtration.
• Stainless steel wire mesh (Code S): Collapse pressure of 30 bar for coarse filtration (25, 50, 100, 200 µm).

Indicators and Safety Devices

For monitoring the condition of the filter element, visual, electrical, or visual-electrical clogging indicators are available, with a standard actuation pressure of 5 bar. It is important to note that the filter element is not protected by an internal bypass; therefore, the hydraulic system must be designed with sufficient means to protect the element from overpressure. Available options also include a “Thermostop” function to inhibit the electrical signal at low temperatures.

Summary technical table of the main features of Stauff SFZ Pressure Filters.
