Description
Efficiency and Reliability in Offline Filtration
The STAUFF SMFS series, including the SMFS-U-030 model, is designed to cover a wide range of offline filtration applications. These compact and robust units support preventive maintenance, both during the transfer of new oils and in the purification of existing hydraulic and lubrication systems. The use of high-quality components makes the system suitable for the rapid purification of small and medium-sized plants or for permanent offline filtration on large hydraulic systems.
Technical Specifications of the SMFS-U-030 Mobile Filtration System

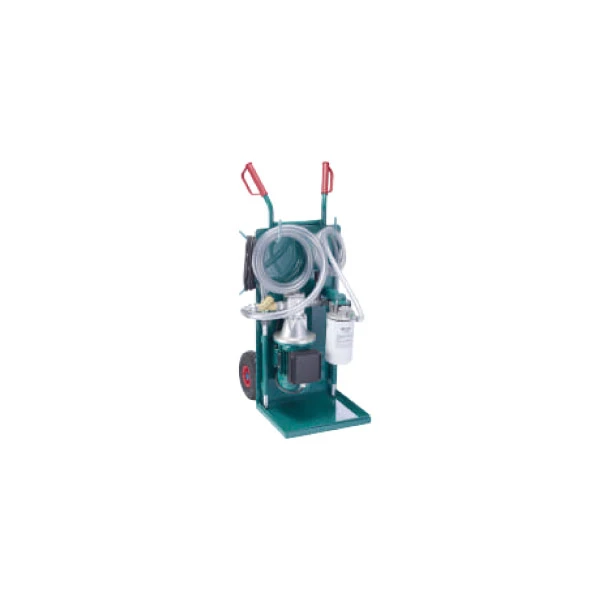

The SMFS-U-030 model stands out for its mobile cart configuration with a robust steel frame, designed to offer maximum operational flexibility. Key features include:
- Pumping Unit: High-quality gear pump coupled with high-efficiency three-phase motors, suitable for continuous duty cycles.
- Flow Rate: Maximum nominal flow rate of 30 l/min (8 US GPM).
- Power Supply: Available with 230 V 50 Hz or 400 V 50 Hz motor versions.
- Water Management: Includes the SF-6721-W water-absorbing element.
- Weight: Approx. 58.5 kg (129 lbs).
Advanced Filtration Technology
All units in the series are equipped with a 200 µm pre-filter and a drip tray for residual oil collection. The filter elements use 4Pro media, which ensures high dirt-holding capacity and superior filtration performance. Filtration ratings from 3 to 125 µm can be selected. In addition, a “blank” filter element is available for draining used oil from the hydraulic reservoir.
SMFS Series Variants
In addition to the SMFS-U-030 model, the series includes several configurations to meet specific operational requirements:
- SMFS-P-015: Lightweight (33 kg) and compact manual portable unit with a maximum flow rate of 15 l/min.
- SMFS-U-DL-015-G: Extremely robust transport cart for 200-liter (52 US GAL) oil drums, with swivel wheels and brake, 15 l/min flow rate, and Spin-On filter SFC-57/58 series.
- SMFS-U-060 / SMFS-U-110: Mobile systems for high flow rates (60 l/min and 110 l/min respectively), ideal for long operating times.
- SMFS-U-CM-110: Advanced version with integrated 8-channel particle counter and a flow rate of 110 l/min.
Technical summary table of the main features of the SMFS-U-030 Mobile Filtration System.
| Feature | Value |
|---|---|
| Model | SMFS-U-030 |
| Unit Type | Mobile cart-mounted filtration system |
| Max Nominal Flow Rate | 30 l/min / 8 US GPM |
| Pump Type | High-quality gear pump |
| Motor Versions | 230 V 50 Hz or 400 V 50 Hz |
| Pre-filter | 200 µm |
| Available Filtration Ratings | From 3 to 125 µm |
| Water Absorption Element | SF-6721-W |
| Approximate Weight | 58.5 kg / 129 lbs |
