Inline Filters for Heavy-Duty Industrial Applications

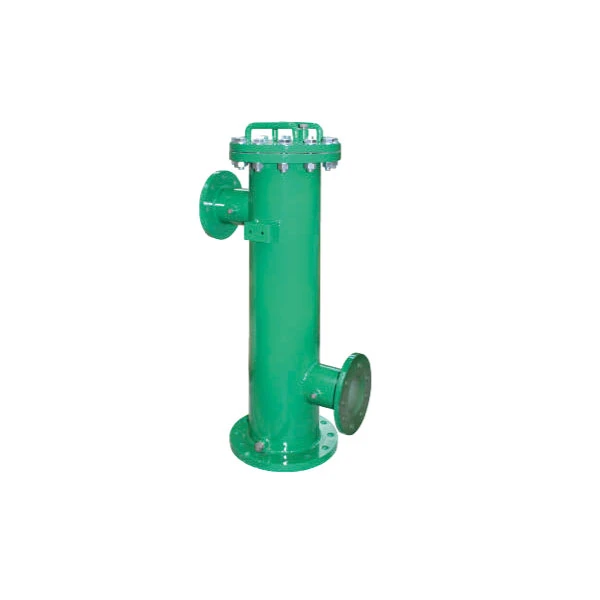

The Stauff SRFL-SW Series Inline Filters for industrial water circuits are an engineering solution developed by STAUFF for direct installation in hydraulic system pipelines. Specifically designed to handle fluids such as water and coolants, these components are ideally suited for the steel industry, particularly for pre-filtration or coarse filtration operations in descaling plants.
Housing Construction and Materials
The SRFL-SW series is manufactured in a Simplex configuration. The filter housing is made as standard from carbon steel, a material suitable for most heavy-duty industrial applications. For applications involving demineralized water or corrosive environments, a stainless steel version is available on request. The connections are flanged and comply with ANSI or DIN standards, covering nominal sizes from DN50 to DN300 depending on the filter size (from size 160 to 1250).
Filter Elements and Operating Principle
The core of the system consists of STAUFF REL series filter elements. These are stainless steel basket screen filters designed to ensure a long service life. Fluid flow passes from the inside to the outside, a flow pattern that ensures solid particles remain trapped inside the basket, preventing them from reaching the clean side of the water circuit during element replacement or maintenance operations. Available filtration ratings range from 50 µm to 200 µm.
Technical Specifications and Performance
The SRFL-SW series delivers high performance to support large fluid volumes:
- Nominal Flow Rate: Up to 13,330 l/min (3,521 US GPM), depending on the housing size.
- Operating Pressure: Designed to operate at a maximum pressure of 16 bar (232 PSI).
- Temperature: Operating temperature range from -10°C to +100°C.
Accessories and Monitoring
To ensure continuous efficiency monitoring, the filters can be equipped with differential pressure clogging indicators (visual, electrical, or visual-electrical). An optional integrated drain valve in the housing is also available to facilitate maintenance operations.
Technical summary table of the main features of the Stauff SRFL-SW Series Inline Filters for industrial water circuits.
| Feature | Value |
|---|---|
| Construction Type | Simplex inline filter |
| Main Application | Industrial water circuits, descaling plants |
| Max Operating Pressure | 16 bar / 232 PSI |
| Max Nominal Flow Rate | 13,330 l/min / 3,521 US GPM |
| Temperature Range | -10°C … +100°C |
| Housing Material | Carbon steel (standard), stainless steel (on request) |
| Seal Materials | PTFE/NBR (Buna-N®), PTFE/FKM (Viton®) |
| Connections | ANSI or DIN flanges |
| Filter Elements | Stainless steel basket (REL series) |
| Filtration Ratings | 50 µm, 80 µm, 100 µm, 125 µm, 200 µm |
| Compatible Fluids | Water, coolant |
