Description
Product Overview

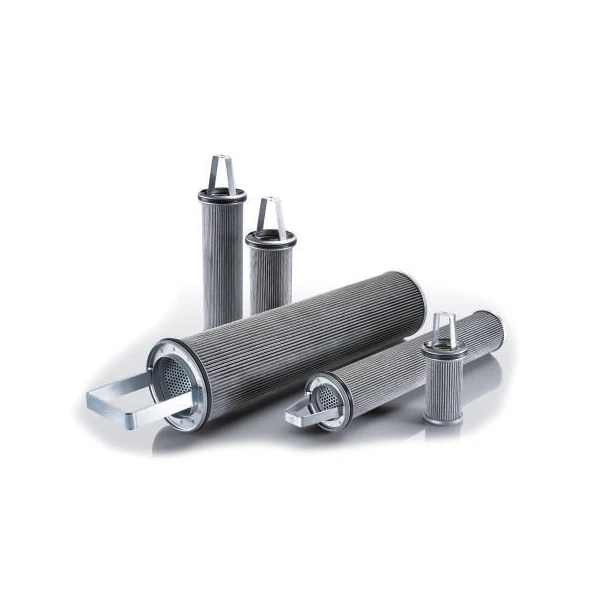

The Star and Basket Elements – SBS and SBK Series represent an advanced technical solution for industrial fluid filtration. Specifically designed to ensure high performance in demanding operating environments, these elements stand out for their robust construction and their ability to maintain consistent filtrate quality over time. The series includes star-pleated elements (“Star-Pleated Elements”), basket sieves (“Basket Sieves”), and ring sieves (“Ring Sieves”).
Construction Features and Materials
The build quality of the SBS and SBK Series is defined by the predominant use of stainless steel. Both the supporting structure and the end caps are manufactured from stainless steel, providing high mechanical and chemical resistance. The filtration core consists of a stainless steel mesh (“Stainless Mesh”), which is specially pleated in the star-type models to maximize the filtration surface area and, consequently, the dirt-holding capacity.
Dimensional and Performance Technical Specifications
The series offers a wide range of dimensional configurations to suit different housings and flow requirements:
- Length: Ranging from 95 mm to 390 mm (3.74 in – 15.35 in).
- Diameter: Between 65 mm and 85 mm (2.56 in – 3.35 in).
- Filtration Rating: Standard availability from 10 to 200 µm, with alternative micron ratings available on request.
Applications and Fluid Compatibility
Thanks to their stainless steel construction and the versatility of the metal mesh, the Star and Basket Elements – SBS and SBK Series are suitable for a wide range of process fluids. Their application is recommended for the filtration of:
- Lubricating oils
- Heavy fuels
- Water
- Chemicals
- Cooling lubricants
This versatility makes them essential components for protecting hydraulic circuits and lubrication systems where fluid cleanliness is critical to system performance.
Technical summary table of the main features of the Star and Basket Elements – SBS and SBK Series.
| Feature | Value |
|---|---|
| Series Designation | SBS and SBK |
| Element Types | Star-pleated, basket, ring sieves |
| Structure and End Cap Material | Stainless steel |
| Filter Media | Stainless steel mesh |
| Length | 95 mm to 390 mm |
| Diameter | 65 mm to 85 mm |
| Filtration Rating (Micron Rating) | 10 … 200 µm |
| Compatible Fluids | Lubricating oils, heavy fuels, water, chemicals, cooling lubricants |
